AC Fans 150 x 172 x 38mm

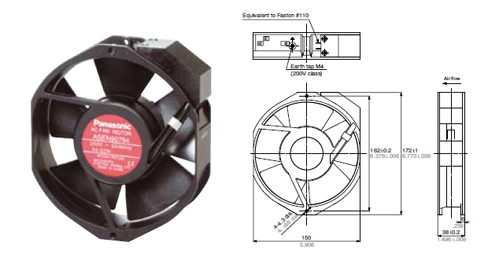

• Dimensions: 150 x 172 x 38mm
• 6 rated voltages: 100VAC to 240VAC
• Frame: die-cast aluminum
• Propeller: reinforced plastic
• RoHS-compliant

Materials used

• Frame: Aluminum alloy
• Fan blades: Fiberglass-reinforced plastic
• Bearings: Ball bearings
• Lead wires: UL3266 and AWG22
• Faston terminal: Faston #110

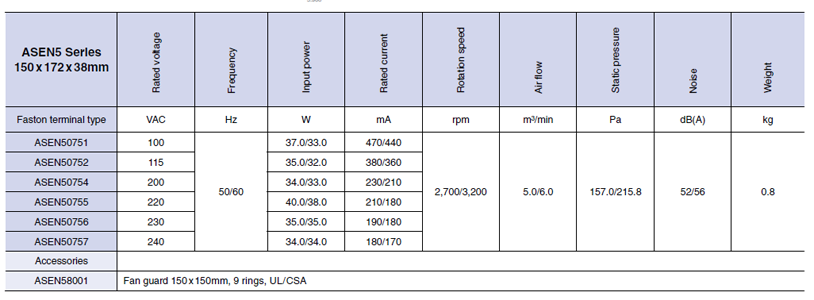

Specifications

• Operating voltage:±10% of rated voltage
• Ambient temperature:Storage: -20℃ to +70℃; operation: -10℃ to +60℃
• Ambient humidity:Max. 85% (RH)
• Temperature rise:Coil: max. 50℃; surface: max. 20℃
• Breakdown voltage:1,500VAC for 1min
• Insulation resistance:Min. 100MO (at 500VDC)
• Vibration resistance:10 to 55Hz; amplitude 0.75mm; applied for 10min in 3 directions
• Protection:Impedance protected
• Lifetime:50,000 hours
